Mastering Multiport Flow: A Guide to 3-Way, 4-Way, and 5-Way Valve Ball

In complex industrial piping systems, the efficiency of flow control relies entirely on the internal design of the valve ball. This guide explores the technical distinctions between L, T, X, and F port valve balls and explains how BOLA-TEK’s precision OEM manufacturing ensures exact flow logic for diverting, mixing, and isolating applications across 3-way, 4-way, and 5-way ball valves.

The Heart of Multi-Directional Flow

Standard 2-way ball valves are simple: they either stop flow or let it pass. However, modern processing plants require sophisticated control—diverting media, mixing fluids, or managing multiple loops within a single valve body.

The key to this versatility is the Multiport Valve Ball. Unlike standard solid balls, these components feature complex internal drilling patterns that determine the valve's function.

BOLA-TEK, a leading OEM valve ball manufacturer in Taiwan, specializes in casting and forging these intricate valve components. From standard L-port diverters to specialized F-port mixing balls, we deliver high-precision solutions in sizes ranging from OD 10mm ~ 520mm.

3-Way Ball Valve – L, T Ball

The Standard for Diverting and Mixing

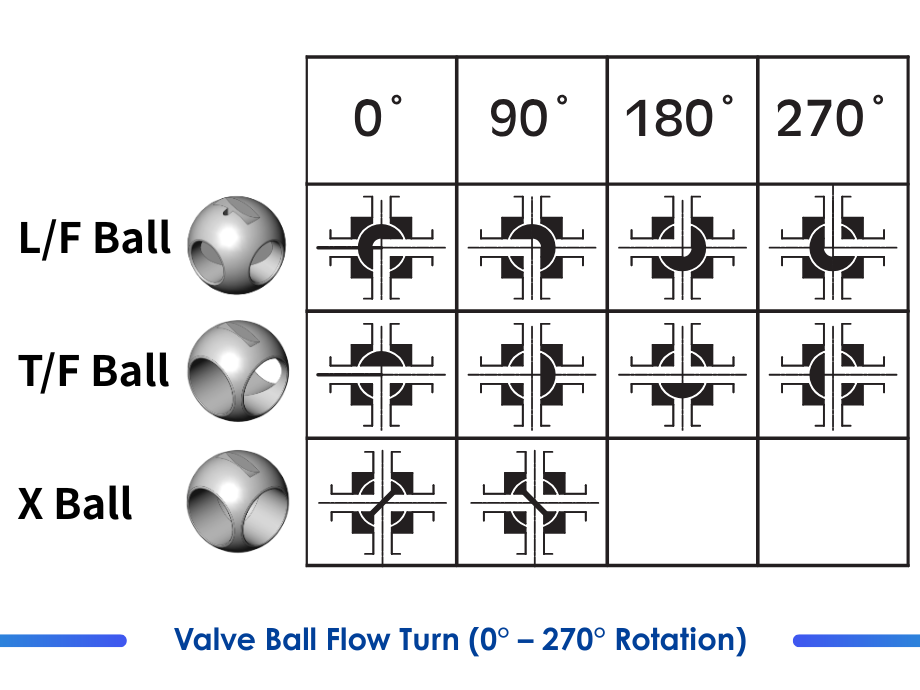

The 3 way ball valve is the industry standard for basic flow redirection. BOLA-TEK manufactures high-precision balls for these valves in two primary designs, capable of 4-position rotation (0°, 90°, 180°, 270°).

▍L-Port Ball (The Diverter)

• A two-hole path drilled at a 90° angle.
• Function: Connects the common bottom port to either side port.
• Rotation: Can rotate 360° to access positions at 0°, 90°, 180°, and 270°.
• Application: Ideal for diverting flow between two tanks or isolating a line.

▍T-Port Ball (The Mixer)

• A three-hole path shaped like a "T".
• Function: A versatile design that can connect two inlets to one outlet (mixing) or one inlet to two outlets (splitting).
• Rotation: Like the L-Port, it supports 0°, 90°, 180°, and 270° positioning.

4-Way Ball Valve – L, T, X Ball

Advanced Control for Dual Loops

For systems requiring simultaneous loop control, 4-way valves utilize specialized ball designs.

▍X-Port Ball (The Double L / Dual L-Port)

• Also known as the "Double L" or "Dual L-Port", this ball features two separate L-shaped flow paths that do not interconnect.
• Rotation Limit: Designed for 0° and 90° operation only.
• Application: Essential for loop switching, hydraulic systems, and heat exchangers where two distinct fluid streams must be reversed or rerouted simultaneously without cross-contamination.

Specialized Multi-Way & F-Port Solutions

Complex Mixing and Flow Combination

For applications requiring precise blending or complex diversion beyond standard ports, the F-Port is the critical component.

▍F-Port Ball (The Multi-Flow Specialist)

• A specialized 3-way, 4-way, 5-way, or multi-port component designed to mix or divert flows.
• Unlike standard L or T port balls, F port balls often feature a specific, complex internal bore configuration. This allows for precise control of multiple flow paths, including a bottom inlet or outlet.
• Function: This unique configuration is frequently used to combine two or two inlet flows into one outlet (or vice versa), utilizing the bottom port as a common mixing or diversion point.
• Rotation: Depending on the design, F-port balls can utilize the full 0°, 90°, 180°, 270° rotation range to select specific flow paths.
• Application: Essential for fluid blending, chemical dosing, and complex piping arrangements where a standard side-entry port cannot achieve the required logic.

Why BOLA-TEK is Your Ideal Manufacturing Partner

Producing specialized F-Port and X-Port balls requires advanced manufacturing capabilities to ensure the complex bores align perfectly with valve seats.

BOLA-TEK stands out with:

• Wide Size Range: We manufacture valve balls from OD 10mm ~ 520mm.
• Material Excellence: Our F-Port and specialized balls are forged or cast from high-grade materials, including stainless steel, carbon steel, and alloy steel, ensuring chemical resistance and durability in high-pressure environments.
• In-House Foundry & Machining: From Raw Casting (sand casting, investment casting, forging, Centrifugal, ) to Precision CNC Machining, we control every step to deliver OEM solutions tailored to your drawings.

Conclusion

Whether you need a standard L-port for a 3-way valve or a specialized F-port for a complex mixing application, the quality of the valve ball determines the system's reliability. BOLA-TEK delivers the precision, material variety, and custom engineering required for high-performance flow control.

Contact with BOLA-TEK now!
